Emergency Body Spray

Model 8901B AXION, wall-mounted body spray with 243.8 cm pressure rated hose, including wall mounting bracket.

Request a Quote Spec Sheet Download

Emergency Body Spray

Often times it is beneficial to have a hose unit like the 8901B AXION to assist in the irrigation process. The drench head can be easily activated with integral squeeze lever, providing a maximum coverage area for the body with its soft flowing streams of water. Unit is conveniently mounted using wall clips keeping the emergency equipment held firmly against the wall.

Dust cover allows for the spray head to stay protected from debris when not in use
Requires minimal maintenance and is equipped with test card to record weekly testing
243.8 cm swivel hose provides an extended coverage area to further optimize the irrigation process
In order to comply with state codes the use of a vacuum breaker is required with all hand held body spray units (Haws offers model SP212)
Per ANSI, "Hand held drench hoses provide support for emergency shower and eyewash units, but shall not replace them."
EN 15154 compliant

Certifications

EN 15154-2:2006
ANSI Z358.1-2014 (R2020)

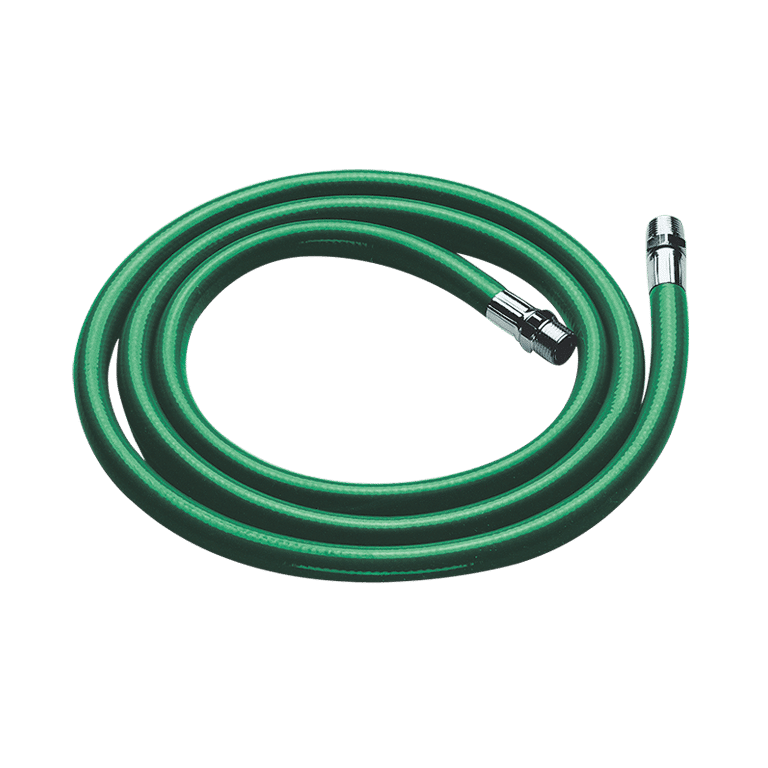

SP140

Green Rubber Hose

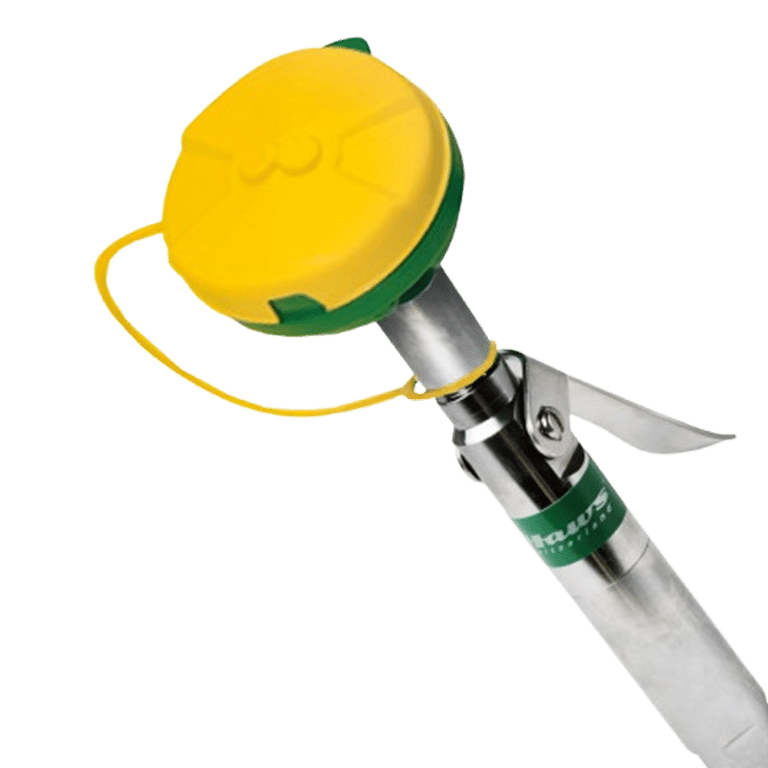

SP248 AXION

Eyewash head with squeeze handle valve

SP170

Test Tag

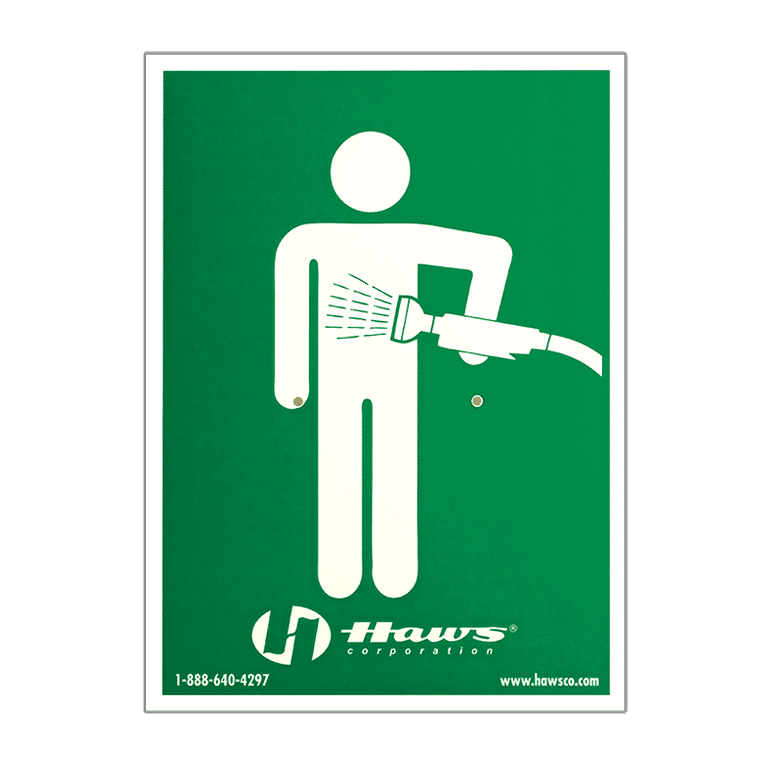

SP176

Hose Spray Sign

SP170

Test Tag

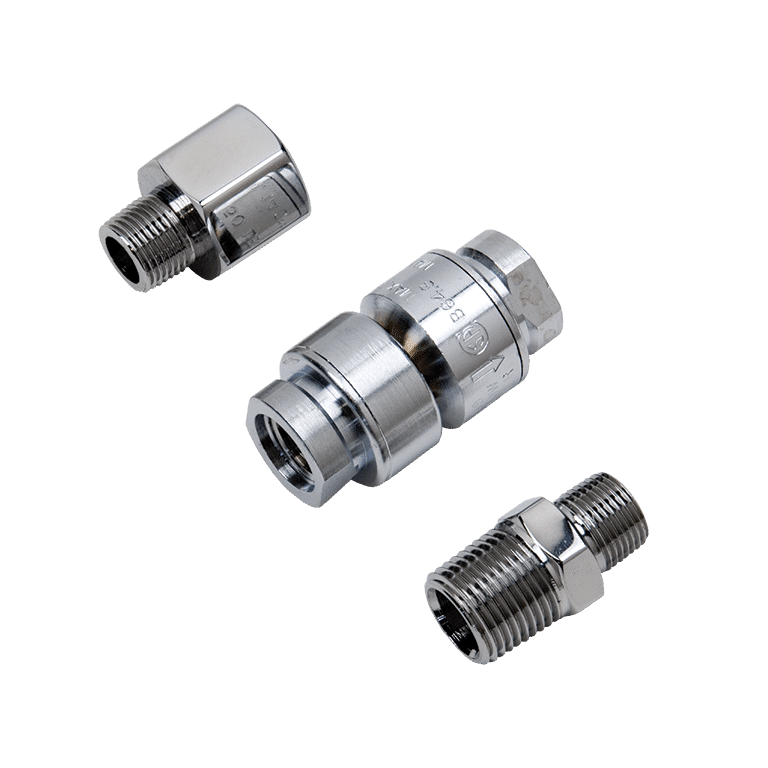

SP212

Vacuum Breaker

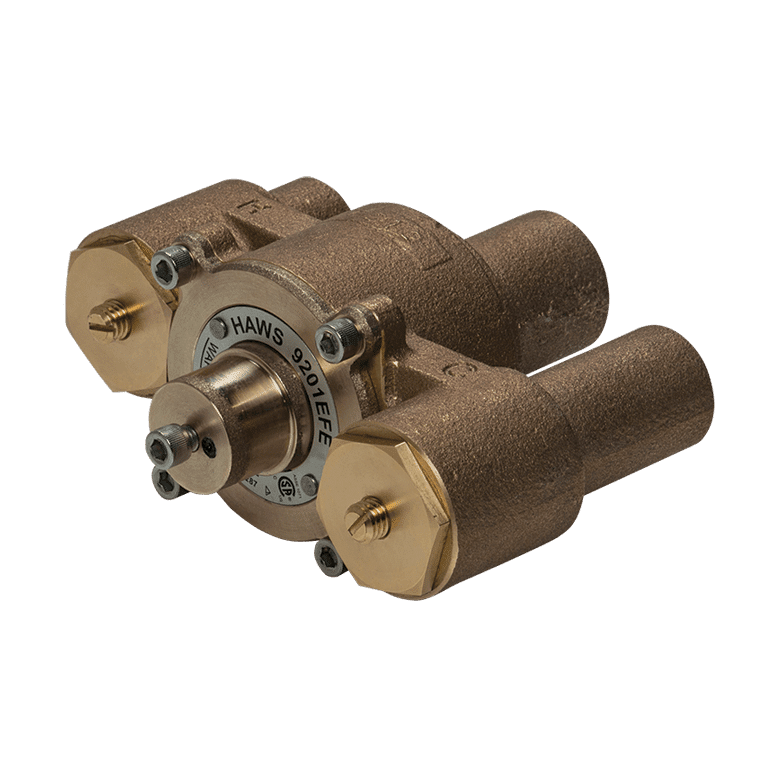

9201EFE

Thermostatic Mixing Valve - 38 liters/min

TWBS.EWE

Thermostatic Mixing Valve - 45 liters/min

Spec Sheet

Brochures

Operational / Maintenance Manual

Certificate of Conformity

EN 15154 Checklist

Specifications

Model 8901B AXION wall-mounted body spray shall include a green ABS plastic head with integral flip-top dust cover, chrome plated brass stay-open squeeze lever valve with integral flow control, 243.8 cm 17.2 bar green rubber hose with chrome-plated swivel fitting at one end, wall-mounting bracket, universal sign, and 1/2" BSP inlet. In order to comply with state codes the use of a vacuum breaker is required with all hand held body spray units (Haws offers model SP212)
